Advent Balanced Pressure Foam Systems
The Advent Balanced Pressure Foam Systems are designed for use with WILLIAMS FIRE & HAZARD CONTROL® (WILLIAMS) THUNDERSTORM®, T-STORM®, and Class A foam concentrates for emergency response to both Class A and Class B fire hazards
The Advent Balanced Pressure Foam Systems are designed for use with WILLIAMS FIRE & HAZARD CONTROL® (WILLIAMS) THUNDERSTORM®, T-STORM®, and Class A foam concentrates for emergency response to both Class A and Class B fire hazards. With proper calibration, the Advent system may also be used to proportion many other commercially available AFFF, AR-AFFF, and protein foam concentrates.
The Advent system utilizes a positive displacement pump for foam concentrate delivery. The pressure is regulated via the foam concentrate by-pass flow which is returned to the suction side of the pump. A foam-to-water heat exchanger (shell and tube type) keeps the foam cool in the event of a prolonged deadhead pump operation.
Features
- Multiple foam injection points
- Simultaneous variable proportioning rates
- Capable of operation with Class A or B foam concentrates
- No additional load on the chassis electrical system (less than 1 amp at 12 VDC)

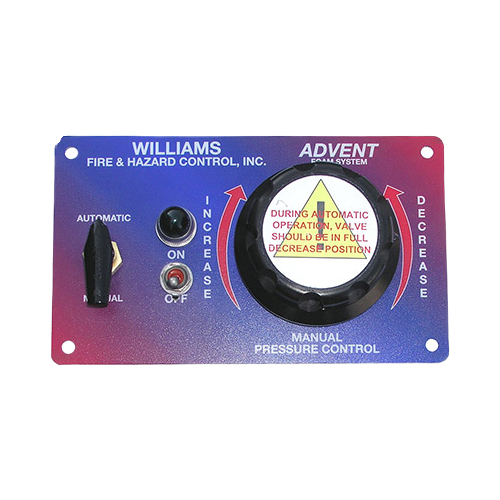

- Automatic pressure control
- Manual by-pass capability
- All mechanical components
- Common manifolding not required
- Variable foam concentrate flow rates from 12 gpm to 120 gpm (45 Lpm to 454 Lpm)
- Broad range of solution flow rates from 40 gpm to 5,000 gpm (151 Lpm to 18,927 Lpm)
Available Options
- Tank-to-pump and tank-fill controls
- A/B tank selector and flush control
- Pneumatic tank control kit
- Pneumatic A/B change-over kit
- Single or dual tank controls (sold separately)
- Individual discharge metering valves (sold separately with discharge ratio controller kits)
